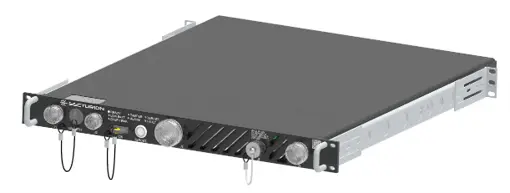

100 Gbps Airborne Data At Rest Encryptor

DarkStor-100G (KG-268) Airborne DARE

Key Features

  • Data rates up to 100 Gbps, full duplex (200 Gbps aggregate)
  • Data is delivered securely and swiftly with < 100 microseconds latency
  • Bump in the wire technology—transparent to the network and end-user
  • File Protocols: iSCSI, TFTP, NFSv2/v3/v4
  • Supports PXE booting
  • Comprehensive built-in self tests
  • Optical Interfaces
  • Aids in moving data from platform to a secure area
  • Transparent to the network and end-user
  • Secure firmware upgradable to future protocols and cryptographic standards
  • High-assurance security features, including fail-safe and tamper-proof capabilities
  • 256-bit AES Hardware-based encryption
  • Operating system and media storage agnostic
  • Manufactured exclusively in the United States as part of a controlled supply chain

  • Applications

    Uniquely designed for aircraft applications.

  • Data At Rest Encryptor Applications
    • Certification
    In NSA Certification Process
    Easy Set Up and Maintenance
    • Easy to install
    • Works with legacy, current, and future Ethernet networks
    • No maintenance required
    Network Interfaces

    Data Interface I/O Connections

    • Red side: 38999 10x10G LACP
    • Black side: 38999 100G QSFP28

    Remote Management Interface

    • SNMP/HTTPS via 38999 Ethernet RJ-45 10/100/1000 Mbps

    Front Panel Console Interface

    • 38999 Ethernet RJ-45 10/100/1000 Mbps

    Key Interface

    • EKMS-308
    Security
    • AES-256 bit
    • Cryptographic Ignition Key (CIK) for secure operation
    • TEMPEST
    • Anti Tamper Design
    • Key loading through DS-101
    Physical
    • Dimensions: (W x H x D) 19" x 1.72" x 20.9"
    • Mounting: Industry standard 19 in. wide x 1U high x 24 to 36 in. deep slide rails.
    • Weight: 24 lbs.
    • Power:
      • 160 Watts
      • 100-240V AC, 50-60Hz
    • Battery:
      • AA Lithium, 3.6VDC
      • User Replaceable
    Environment
    • Operating Temperature: -5° to 55° C
    • Storage Temperature: -55° to 85° C
    • Humidity: 95% RH, Non-Condensing
    • Operational Altitude: -1500 ft to 11,000 ft above sea level
    • Storage Altitude: -1500 ft to 41,000 ft above sea level
    • Shock: 15g - 11ms
    • Tested to MIL-STD-810G: Salt Fog, Sand, Dust, Rain, Rail Impact
    • EMI Tested to MIL-461
    • NSTISSAM TEMPEST/1-92
    Reliability
    • Mean Time Between Failure (MTBF) 250,000 hours per Telcordia SR-332, benign ground environment
    • Mean Time To Repair (MTTR): 10 minutes to remove and replace battery or fans




    Combining DarkStor and DarkLink offers an unparalleled end-to-end security solution
